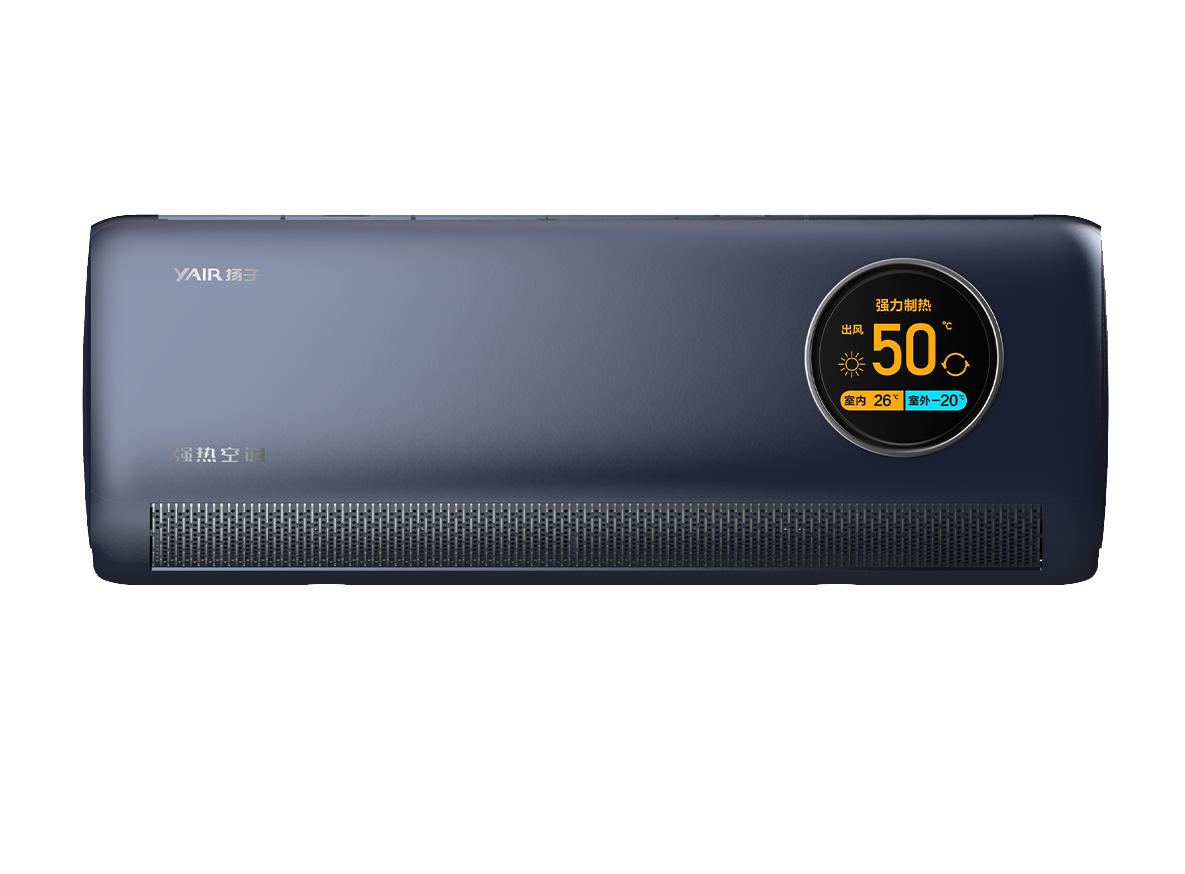

Strong Heating Split Air Conditioner 18,000BTU
Split Wall Type Air conditioner
Wall mounted air conditioner
Tropical Heating Air Conditioner
With ambient temperature -20 °C , internal air outlet temperature can be up to 50 °C, it is truly a good product that can meet the heating needs of ultra cold areas.
The lower the ambient temperature, the stronger the heating
With ambient temperature -20 °C,heating capacity is 110% of the Rated Heat capacity.
| Model | DRK-40GW/LFG052aBpA1 | DRK-60(100)GW/08aBpA1 | DRKC-40/52/30GW/LFG056aBpA1 | CLR-30L/35/45GW/06fBpC1++ | ||
| DRK-40GW/LFG056aBpA1 | ||||||
| Rated Dehumidity | L/D (30°C/80%RH) | - | - | 30 | 30 | |
| Norminal Dehumidity | Kg/H (27°C/60%RH) | - | - | 0.8 | 0.8 | |
| Nominal Dehumidity Input Power | W | - | - | 380 | 285 | |
| Dehumidity Per H.KW | Kg/H.K w | - | - | 2.1 | 2.8 | |
| Dehumidity Opearting Noise Level | dB(A) | - | - | 28/32 | 28/32 | |
| Dehumdity Ambient Working Temperature | °C | - | - | 5~40 | 5~40 | |
| Dehumidity Working Area | m² | - | - | 40~120 | 40~120 | |
| Power Supply | V/PH/Hz | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 | |
| Rated Cooling Capacity | W | 600-5300 | 800-7600 | 600-5300 | 600-4200 | |
| Rated Cooling Input Power | W | 200-2000 | 250-3500 | 200-2000 | 200-1350 | |
| Rated Heating Capacity | W | - | - | - | 500-5200 | |
| Rated Heating Input Power | W | - | - | - | 200-1460 | |
| Nornimial heating Capacity(-12°C) | W | 4000 | 6000 | 4000 | - | |
| Low Temperature Heating Input Power(-12°C) | W | 1550 | 2330 | 1550 | - | |
| Nornimial heating Capacity(-20°C) | W | 4400 | 6600 | 4400 | - | |
| Low Temperature Heating Input Power(-20°C) | W | 2230 | 3150 | 2230 | - | |
| Noise Level | Indoor Unit | dB(A) | 30-42-45 | 38-44-46 | 30-42-45 | 24-37-41 |
| Outdoor Unit | dB(A) | 54 | 57 | 54 | 52 | |
| Refrigerant | Type | - | R32 | R32 | R32 | R32 |
| Unit Weight | Indoor unit | Kg | 10 | 16 | 10 | 11 |
| Outdoor unit | Kg | 31 | 48 | 31 | 31 | |
| Indoor Unit Dimension | L*W*H | mm | 890*322*215 | 890*322*215 | 890*322*215 | 890*322*215 |
| Outdoor Unit Dimension | L*W*H | mm | 874*559*368 | 874*559*368 | 874*559*368 | 874*559*368 |
| Max. Suction Pressure | Mpa | 2.5 | ||||
| Max. Exhaust Pressure | Mpa | 4.3 | ||||
| Max. Operating Pressure | Mpa | 4.3 | ||||
| AC Ambient Working Temperature | °C | -35~60 | -35~60 | -35~60 | -12~60 | |
| AC Working Area | m² | 21~31 | 33~45 | 21~31 | 15~22 | |
,
