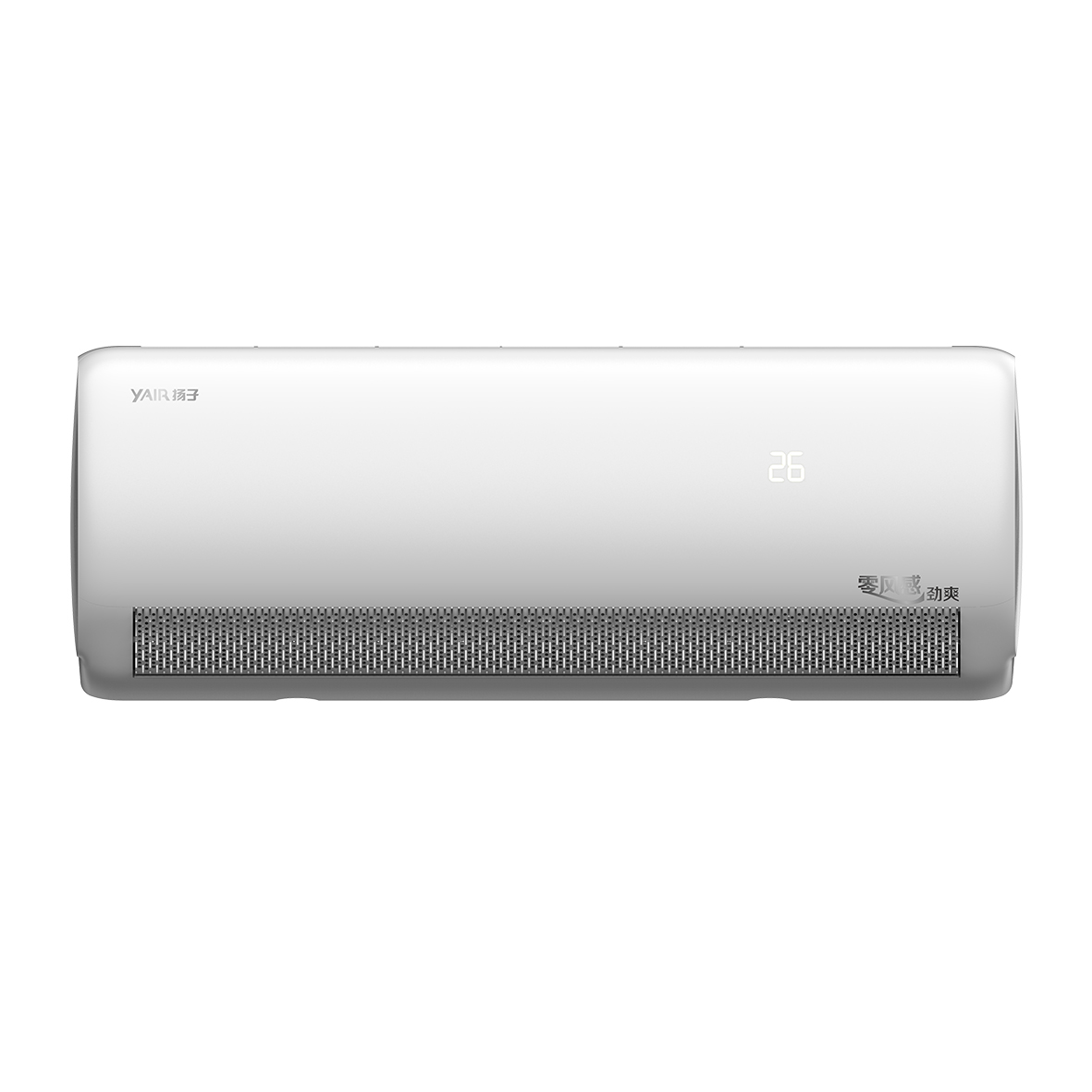

Inverter Split Air Conditioner 12,000BTU
Inverter R32 12,000 wall type air conditioner
Inverter wall type
| Model | KFR-26GW/LFG052T1 | KFR-35GW/LFG052T3 | KFR-52LW/LFG551fB1 | KFR-72LW/LFG551fB1 | KFR-120LW/W251sfB3 | ||
| Rated Cooling Capacity | W | 1000/1800/2600 | 1500/2300/3500 | 5200（1400-6000） | 7200（1400-7700） | 12000 | |
| Rated Cooling Input Power | W | 190/380/560 | 288/560/1000 | 1300（270-1850） | 1950（280-2700） | 4250 | |
| Rated Heating Capacity | W | 3720 | 4400 | 6250（1300-7400） | 8400（1400-9700） | 13200 | |
| Rated Heating Input Power | W | 930 | 1200 | 1700（250-2150） | 2550（260-3042） | 3950 | |
| Indoor Air Flow Volume | m³/h | 620 | 700 | 900 | 1200 | 2000 | |
| Noise Level | Indoor Unit | dB(A) | 24-36-40 | 24-37-42 | 37-41-43 | 38-48 | 45054 |
| Outdoor Unit | dB(A) | 51 | 52 | 54 | 56 | 61 | |
| Refrigerant | Type | - | R32 | R32 | R32 | R32 | R32 |
| Unit Weight | Indoor unit | Kg | 10 | 11 | 28 | 29 | 37 |
| Outdoor unit | Kg | 22 | 25 | 31 | 44 | 79 | |
| Indoor Unit Dimension | L*W*H | mm | 801*298*210 | 890*322*215 | 389*1750*404 | 389*1750*404 | 1850*426*426 |
| Outdoor Unit Dimension | L*W*H | mm | 758*500*336 | 797*556*336 | 874*559*353 | 989*715*400 | 1060*879*488 |
