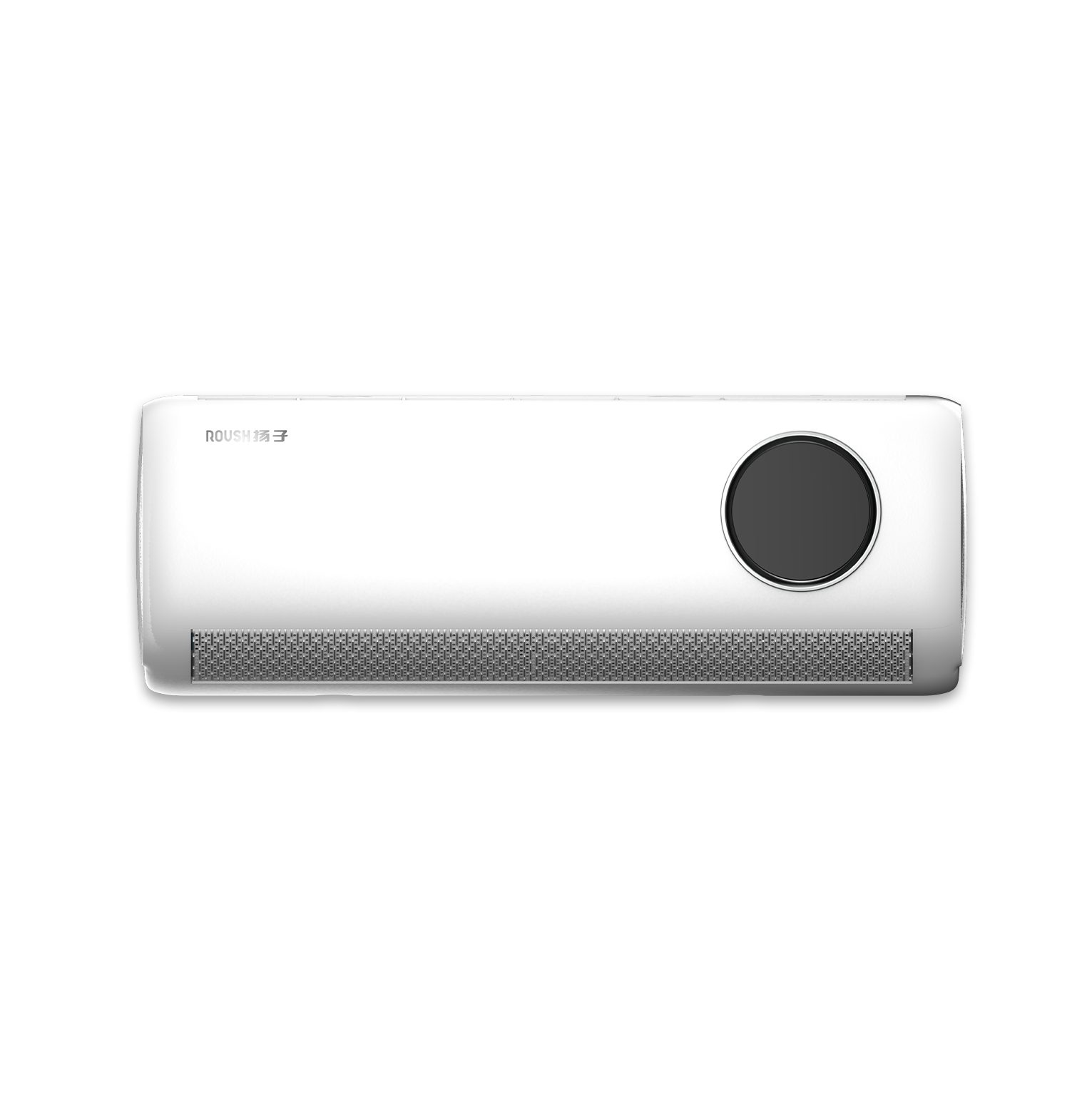

Dehumidify Split Air Conditioner 24,000BTU

Split Wall Type Air conditioner

Wall mounted air conditioner



Dehumidification capacity 30L/Day



Applicable temperature In dehumidification mode 5-40



One Machine Mode: Dehumidifier, Cooling, heating



5 Dehumidification Modes:

Constant Temperature Dehumidification

In Constant Temperature mode, air conditioner works as a dehumidifier, indoor temperature will be stable.





Heating Dehumidification

In Heating Dehumification mode, air conditioner works to supply hotter air than internal temperature.After long operating, indoor area will be more comfortable.



Leaving Dehumidification

In Leaving Dehumification mode, air conditioner runs demumidification function to keep room dry but save energy.



Dry Clothes Dehumidification

In Dry Clothes Dehumidification mode, air conditioner indoor unit modifies the air free mode to swing mode, dehumidify setting in 40% to dry clothes quickly.



Sleep Dehumidification

In Sleep Dehumidifcation mode, air conditioner indoor fan runs in low speed within low noise level.



,
Model DRK-40GW/LFG052aBpA1 DRK-60(100)GW/08aBpA1 DRKC-40/52/30GW/LFG056aBpA1 CLR-30L/35/45GW/06fBpC1++
DRK-40GW/LFG056aBpA1
Rated Dehumidity  L/D (30°C/80%RH) - - 30 30
Norminal Dehumidity Kg/H (27°C/60%RH) - - 0.8 0.8
Nominal Dehumidity Input Power W - - 380 285
Dehumidity Per H.KW Kg/H.K w - - 2.1 2.8
Dehumidity Opearting Noise Level dB(A) - - 28/32 28/32
Dehumdity Ambient Working Temperature °C - - 5~40 5~40
Dehumidity Working Area m² - - 40~120 40~120
Power Supply V/PH/Hz 220/1/50 220/1/50 220/1/50 220/1/50
Rated Cooling Capacity W 600-5300 800-7600 600-5300 600-4200
Rated Cooling Input Power W 200-2000 250-3500 200-2000 200-1350
Rated Heating Capacity W - - - 500-5200
Rated Heating Input Power W - - - 200-1460
Nornimial heating Capacity(-12°C) W 4000 6000 4000 -
Low Temperature Heating Input Power(-12°C) W 1550 2330 1550 -
Nornimial heating Capacity(-20°C) W 4400 6600 4400 -
Low Temperature Heating Input Power(-20°C) W 2230 3150 2230 -
Noise Level Indoor Unit dB(A) 30-42-45 38-44-46 30-42-45 24-37-41
Outdoor Unit dB(A) 54 57 54 52
Refrigerant Type - R32 R32 R32 R32
Unit Weight Indoor unit Kg 10 16 10 11
Outdoor unit Kg 31 48 31 31
Indoor Unit Dimension L*W*H mm 890*322*215 890*322*215 890*322*215 890*322*215
Outdoor Unit Dimension L*W*H mm 874*559*368 874*559*368 874*559*368 874*559*368
Max. Suction Pressure Mpa 2.5
Max. Exhaust Pressure Mpa 4.3
Max. Operating Pressure Mpa 4.3
AC Ambient Working Temperature °C -35~60 -35~60 -35~60 -12~60
AC Working Area m² 21~31 33~45 21~31 15~22
,

,
Model DRK-40GW/LFG052aBpA1 DRK-60(100)GW/08aBpA1 DRKC-40/52/30GW/LFG056aBpA1 CLR-30L/35/45GW/06fBpC1++
DRK-40GW/LFG056aBpA1
Rated Dehumidity  L/D (30°C/80%RH) - - 30 30
Norminal Dehumidity Kg/H (27°C/60%RH) - - 0.8 0.8
Nominal Dehumidity Input Power W - - 380 285
Dehumidity Per H.KW Kg/H.K w - - 2.1 2.8
Dehumidity Opearting Noise Level dB(A) - - 28/32 28/32
Dehumdity Ambient Working Temperature °C - - 5~40 5~40
Dehumidity Working Area m² - - 40~120 40~120
Power Supply V/PH/Hz 220/1/50 220/1/50 220/1/50 220/1/50
Rated Cooling Capacity W 600-5300 800-7600 600-5300 600-4200
Rated Cooling Input Power W 200-2000 250-3500 200-2000 200-1350
Rated Heating Capacity W - - - 500-5200
Rated Heating Input Power W - - - 200-1460
Nornimial heating Capacity(-12°C) W 4000 6000 4000 -
Low Temperature Heating Input Power(-12°C) W 1550 2330 1550 -
Nornimial heating Capacity(-20°C) W 4400 6600 4400 -
Low Temperature Heating Input Power(-20°C) W 2230 3150 2230 -
Noise Level Indoor Unit dB(A) 30-42-45 38-44-46 30-42-45 24-37-41
Outdoor Unit dB(A) 54 57 54 52
Refrigerant Type - R32 R32 R32 R32
Unit Weight Indoor unit Kg 10 16 10 11
Outdoor unit Kg 31 48 31 31
Indoor Unit Dimension L*W*H mm 890*322*215 890*322*215 890*322*215 890*322*215
Outdoor Unit Dimension L*W*H mm 874*559*368 874*559*368 874*559*368 874*559*368
Max. Suction Pressure Mpa 2.5
Max. Exhaust Pressure Mpa 4.3
Max. Operating Pressure Mpa 4.3
AC Ambient Working Temperature °C -35~60 -35~60 -35~60 -12~60
AC Working Area m² 21~31 33~45 21~31 15~22
,

,
Model DRK-40GW/LFG052aBpA1 DRK-60(100)GW/08aBpA1 DRKC-40/52/30GW/LFG056aBpA1 CLR-30L/35/45GW/06fBpC1++
DRK-40GW/LFG056aBpA1
Rated Dehumidity  L/D (30°C/80%RH) - - 30 30
Norminal Dehumidity Kg/H (27°C/60%RH) - - 0.8 0.8
Nominal Dehumidity Input Power W - - 380 285
Dehumidity Per H.KW Kg/H.K w - - 2.1 2.8
Dehumidity Opearting Noise Level dB(A) - - 28/32 28/32
Dehumdity Ambient Working Temperature °C - - 5~40 5~40
Dehumidity Working Area m² - - 40~120 40~120
Power Supply V/PH/Hz 220/1/50 220/1/50 220/1/50 220/1/50
Rated Cooling Capacity W 600-5300 800-7600 600-5300 600-4200
Rated Cooling Input Power W 200-2000 250-3500 200-2000 200-1350
Rated Heating Capacity W - - - 500-5200
Rated Heating Input Power W - - - 200-1460
Nornimial heating Capacity(-12°C) W 4000 6000 4000 -
Low Temperature Heating Input Power(-12°C) W 1550 2330 1550 -
Nornimial heating Capacity(-20°C) W 4400 6600 4400 -
Low Temperature Heating Input Power(-20°C) W 2230 3150 2230 -
Noise Level Indoor Unit dB(A) 30-42-45 38-44-46 30-42-45 24-37-41
Outdoor Unit dB(A) 54 57 54 52
Refrigerant Type - R32 R32 R32 R32
Unit Weight Indoor unit Kg 10 16 10 11
Outdoor unit Kg 31 48 31 31
Indoor Unit Dimension L*W*H mm 890*322*215 890*322*215 890*322*215 890*322*215
Outdoor Unit Dimension L*W*H mm 874*559*368 874*559*368 874*559*368 874*559*368
Max. Suction Pressure Mpa 2.5
Max. Exhaust Pressure Mpa 4.3
Max. Operating Pressure Mpa 4.3
AC Ambient Working Temperature °C -35~60 -35~60 -35~60 -12~60
AC Working Area m² 21~31 33~45 21~31 15~22
,

,
Model DRK-40GW/LFG052aBpA1 DRK-60(100)GW/08aBpA1 DRKC-40/52/30GW/LFG056aBpA1 CLR-30L/35/45GW/06fBpC1++
DRK-40GW/LFG056aBpA1
Rated Dehumidity  L/D (30°C/80%RH) - - 30 30
Norminal Dehumidity Kg/H (27°C/60%RH) - - 0.8 0.8
Nominal Dehumidity Input Power W - - 380 285
Dehumidity Per H.KW Kg/H.K w - - 2.1 2.8
Dehumidity Opearting Noise Level dB(A) - - 28/32 28/32
Dehumdity Ambient Working Temperature °C - - 5~40 5~40
Dehumidity Working Area m² - - 40~120 40~120
Power Supply V/PH/Hz 220/1/50 220/1/50 220/1/50 220/1/50
Rated Cooling Capacity W 600-5300 800-7600 600-5300 600-4200
Rated Cooling Input Power W 200-2000 250-3500 200-2000 200-1350
Rated Heating Capacity W - - - 500-5200
Rated Heating Input Power W - - - 200-1460
Nornimial heating Capacity(-12°C) W 4000 6000 4000 -
Low Temperature Heating Input Power(-12°C) W 1550 2330 1550 -
Nornimial heating Capacity(-20°C) W 4400 6600 4400 -
Low Temperature Heating Input Power(-20°C) W 2230 3150 2230 -
Noise Level Indoor Unit dB(A) 30-42-45 38-44-46 30-42-45 24-37-41
Outdoor Unit dB(A) 54 57 54 52
Refrigerant Type - R32 R32 R32 R32
Unit Weight Indoor unit Kg 10 16 10 11
Outdoor unit Kg 31 48 31 31
Indoor Unit Dimension L*W*H mm 890*322*215 890*322*215 890*322*215 890*322*215
Outdoor Unit Dimension L*W*H mm 874*559*368 874*559*368 874*559*368 874*559*368
Max. Suction Pressure Mpa 2.5
Max. Exhaust Pressure Mpa 4.3
Max. Operating Pressure Mpa 4.3
AC Ambient Working Temperature °C -35~60 -35~60 -35~60 -12~60
AC Working Area m² 21~31 33~45 21~31 15~22
,,,
