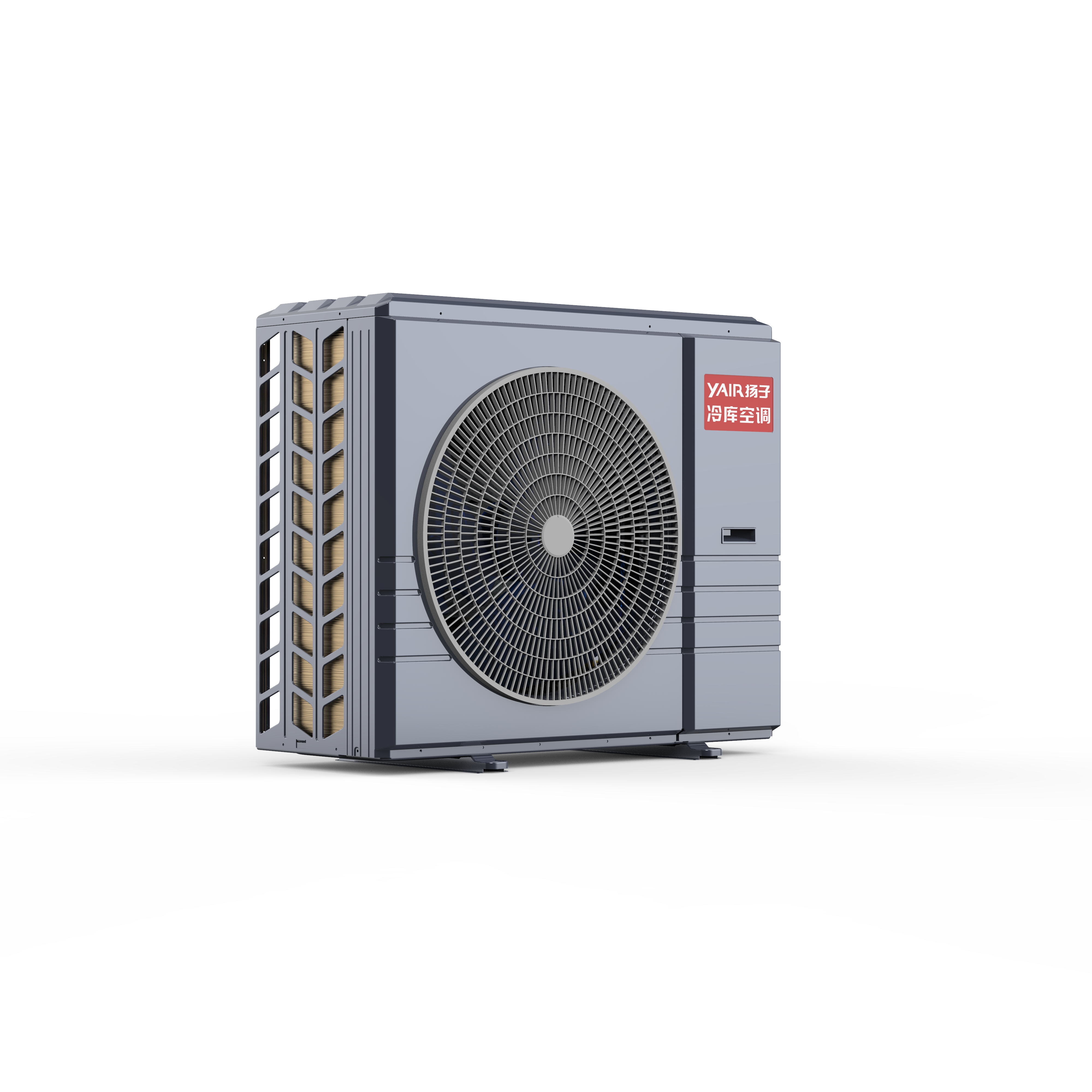

Cold Chain Condensing Unit 12.5kw
Inverter Condensing Unit
Two stage scroll compressor with wide temperature range control, achieving stable operation of evaporation temperature from -50 ℃ to +40 ℃.
Timely adjust the required cooling capacity according to load, providing a stable storage temperature and ensuring a longer shelf life of food.
Temperature fluctuation range can be ± 0.5 ℃. Automatic defrosting. Low temperature air return to the cold storage.
DC inverter compressor improves energy efficiency, ensuring that the compressor always runs at the optimal point.
Intelligent control of defrosting can save energy in more than 40%.
| Cold Storage Model | YLCR12.5DWf | YLCR15DWf | YLCR20DWf | ||
| Freezer Model | YLDR12.5DWf | YLDR15DWf | YLDR20DWf | ||
| Deep Freezer Model | YLSSDR12.5DWf | YLSSDR15DWf | YLSSDR20DWf | ||
| Normal Cooling Capacity | KW | 12.5 | 15 | 20 | |
| Power Supply | V/Hz | 220/50 | 220/50 | 220/50 | |
| Max. Cooling Input Power | KW | 6 | 6 | 6 | |
| Max. Cooling Current | A | 27.5 | 27.5 | 27.5 | |
| Norminal Condition | ℃ | 10/32 | 10/32 | 10/32 | |
| Cold Storage Model Temp. | ℃ | 0~40 | 0~40 | 0~40 | |
| Freezer Model | ℃ | -35~40 | -35~40 | -35~40 | |
| Deep Freezer Model Temp. | ℃ | -50~40 | -50~40 | -50~40 | |
| Inlet Air Temp. | ℃ | -45~65 | -45~65 | -45~65 | |
| Compressor Model | - | HDD170-V2VA | HDD170-V2VA | HDD170-V2VA | |
| Refrigerant Type | - | R32 | R32 | R32 | |
| Outdoor Unit Size | mm | 1060*879*488 | 1060*879*488 | 1060*879*488 | |
| Outdoor Unit Weight | kg |
 81
|
81 | 81 | |
| Outdoor Unit Noise Level | dB(A) | 65 | 64 | 62 | |
| Connect Pipe Size | mm | Φ9/Φ16 | Φ9/Φ16 | Φ9/Φ16 | |
| Single Indoor Unit Air Flow Volume | m³/h | 6500 | 6500 | 6500 | |
| Single Indoor Unit Size | mm | 1633*720*364 | 1633*720*364 | 1633*720*364 | |
| Single Indoor Unit Weight | kg | 38 | 38 | 38 | |
