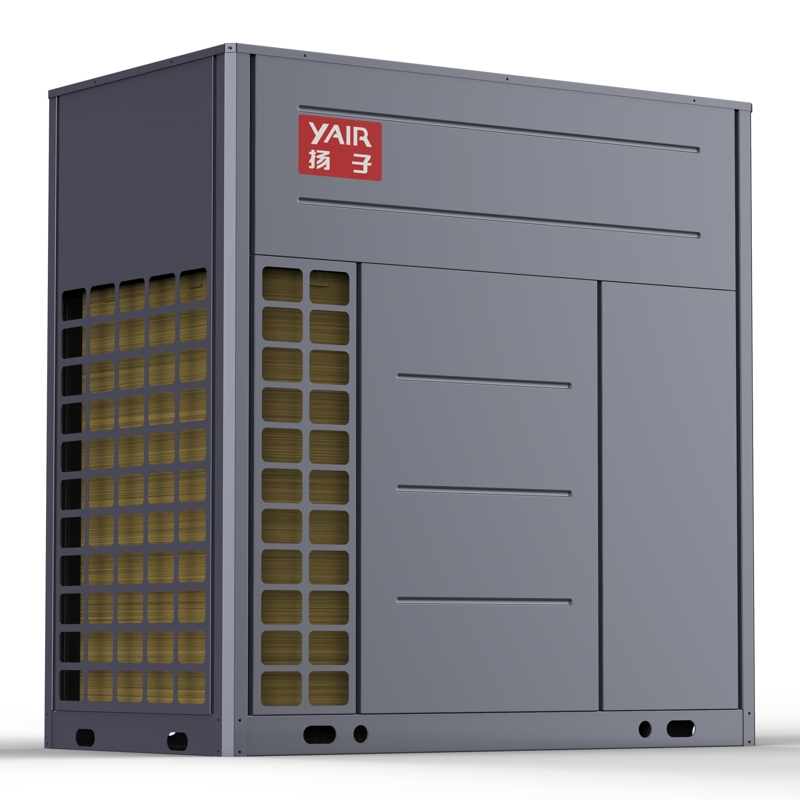

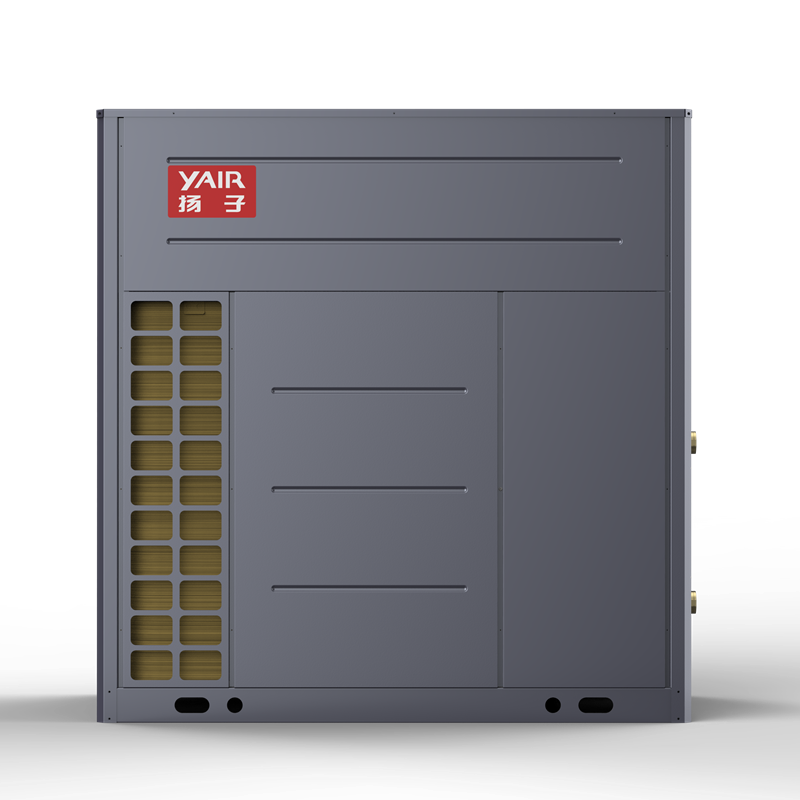

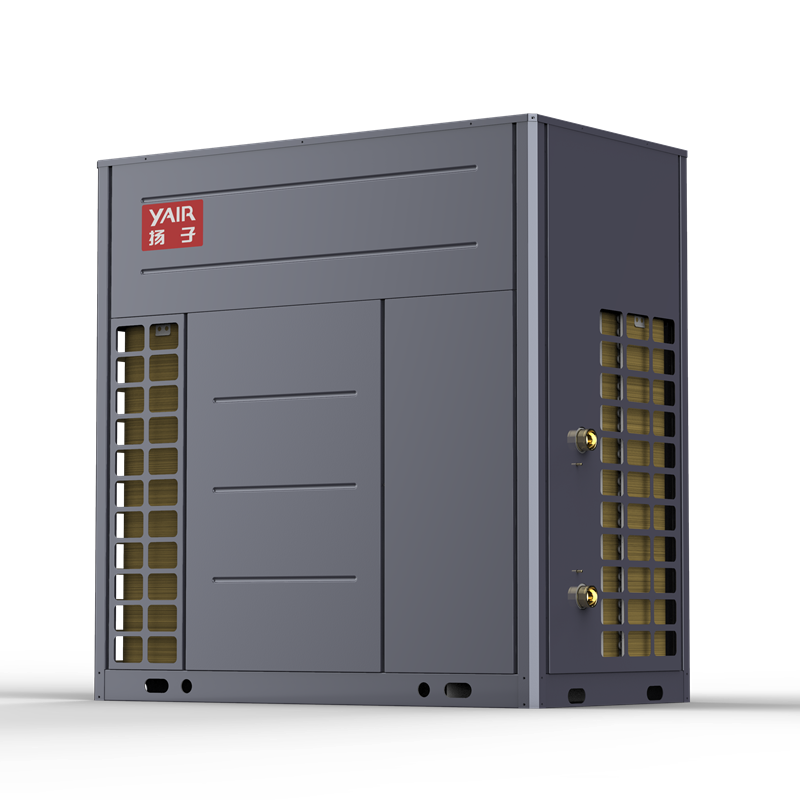

DC Inverter Modular Chiller 75kw
LSRF-75G/fBH-E1
DC inverter chiller equips EVI type high-efficiency compressor, paired with high-efficiency heat exchanger, supply strong cooling and heating capacity. It can operate in heating mode in -35 ° C ultra-low ambient temperature.
| Model | LSRF-75G/fBH- E1 | ||
| Cooling Capacity | Kw | 65 | |
| Heating Capacity | Kw | 75 | |
| Power Supply | V/Ph/Hz | 380/3/50 | |
| Cooling Rated Input Power | Kw | 21.2 | |
| Heating Rated Input Power | Kw | 21.1 | |
| Max. operating Current | A | 54.6 | |
| Evaporating Side | Type | - | Shell and Tube Type |
| Water Flow Voluem | M3/H | 11.3 | |
| Water Pressure Drop | Kpa | 60 | |
| Unit Dimension | Length | mm | 1710 |
| Width | mm | 930 | |
| Height | mm | 1760 | |
| Noise Level | dB(A) | 64 | |
| Compressor Type | - | Scroll Type | |
| Protection | - | High/Low pressure protection, overload protection, phase absence protection, water short protection, anti freezing protection | |
| Refrigerant | Type | - | R32 |
| weight | Kg | 8.1 | |
| Unit Weight | Kg | 400 | |
| Inlet/Outlet Water Pipe | mm | DN40 | |
