Fan Coil Unit

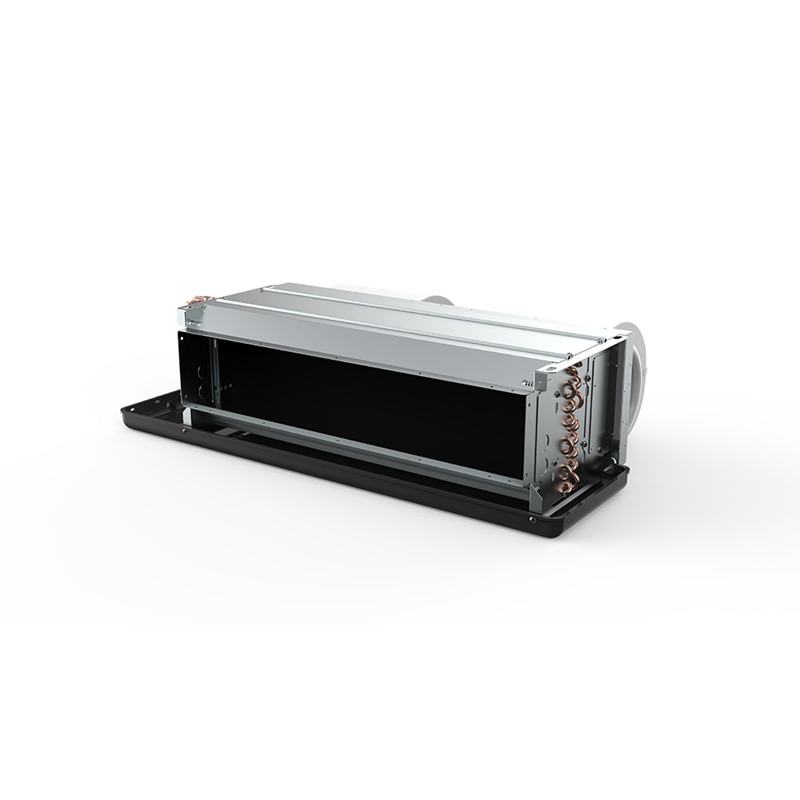

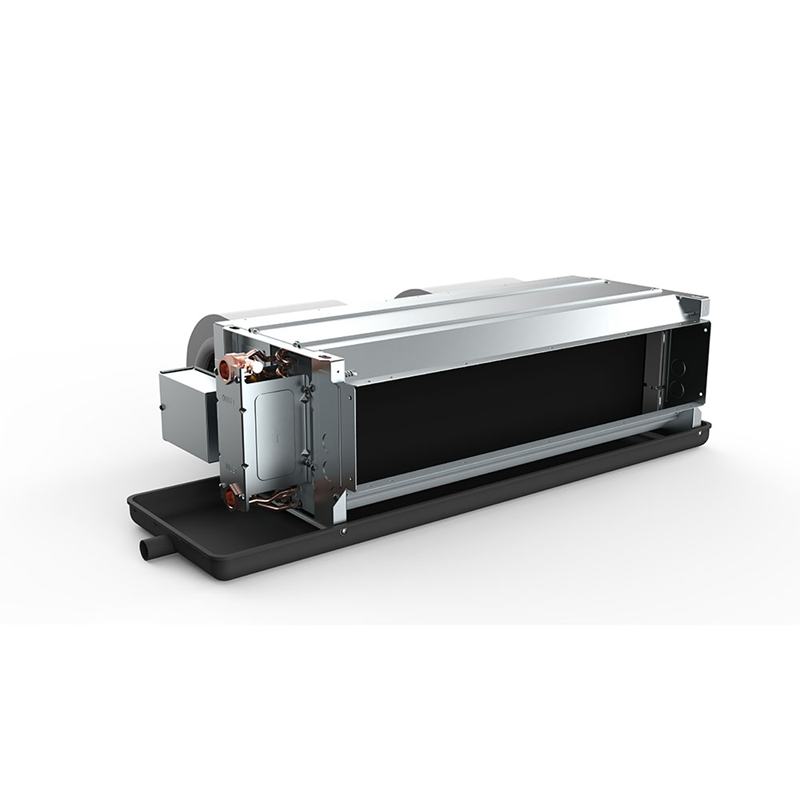

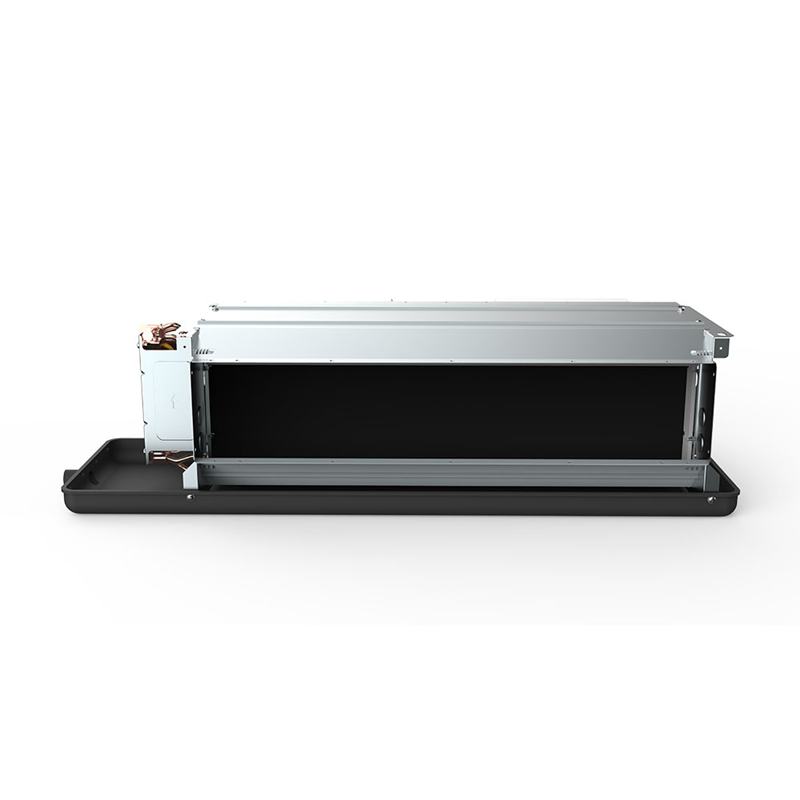

Horizontal concealed Type Fan Coil

New design and reliable structure, installation height of the unit is 240mm, effectively reducing installation space.

Quite Operation, The fan adopts a low noise forward multi wing ABS centrifugal fan with independent mold opening design and strengthened fan structure. The new centrifugal fan has optimized the air flow channel, making installation and maintenance more convenient, with low speed and high efficiency.

Convenient maintenance, the unit is matched with a four speed motor. The static pressure of the unit is adjustable,15Pa and 30Pa making engineering debugging convenient and reducing engineering maintenance costs.

Free conversion of back return air and bottom return air.

Specification

Model			FP-34	FP-51	FP-68	FP-85	FP-102	FP-136	FP-170	FP-204	FP-238
Air Flow Volume	High	m³/h	340	510	680	850	1020	1360	1700	2040	2380
	Mid	m³/h	255	383	510	638	765	1020	1275	1530	1785
	Low	m³/h	170	255	340	425	510	680	850	1020	1190
Cooling Capacity	High	W	1800	2700	3600	4500	5400	7250	9350	11100	12600
	Mid	W	1750	2400	3300	4450	5170	6660	8370	10170	11700
	Low	W	1530	1850	2590	3480	4000	5180	6510	7910	9100
Heating Capacity	Inlet Water 60°C	W	3600	4900	6400	8100	9350	12500	15700	19000	20000
Heating Capacity	Inlet Water 45°C	W	2050	2900	4000	5000	5800	7900	9500	11700	12800
Fan	Type	-	Centrifugal Fan
Fan	Qty	-	1	2	2	2	2	3	4	4	4
Motor	Qty	-	1	1	1	1	1	2	2	2	2
Power Supply	-	V/PH/Hz	220/1/50
Input power	30Pa	W	41	56	70	84	104	151	169	206	245
Input power	50Pa	W	-	-	-	100	118	174	191	230	290
Noise Level	30Pa	dB(A)	35.5	37.5	38.5	42	42.5	45	46	49	52
Noise Level	50Pa	dB(A)	-	-	-	45	47	48.5	51	53	55
Heat Exchanger	Working Pressiure	Mpa	≤1.6
Heat Exchanger	Water Pipe Size	mm	DN20
Trip Dray Pipe Size		mm	DN20
Water Flow Volume		m³/h	0.39	0.52	0.7	0.88	1.02	1.4	1.7	2.1	2.3
Water Resistance		kPa	14	26	17	20	35	29	34	40	50
Unit Weight		Kg	10.5	13.5	14	14.5	15.5	24.3	27.6	28.1	29.8
Unit Dimension	L	mm	725	925	925	925	1025	1415	1675	1675	1775
	W	mm	530	530	530	530	530	530	530	530	530
	H	mm	240	240	240	240	240	240	240	240	240

Remark:
1.Cooling Testing Condition: Inet Air DB Temperature 27°C ,WB 19.5°C, Inet water Temperature 7°C ,outlet water temperature 5 °C
2.Heating Testing Condition: Inet Air DB Temperature 21°C ,outlet water temperature 60 °C
3.Noise Level Testing Condition: In Rated Operating Conditioning, background Noise in 21.5dB(A), testing in front and below of the unit with 1m.
