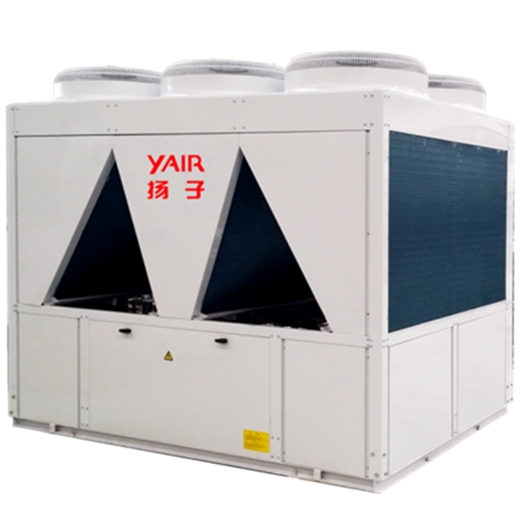

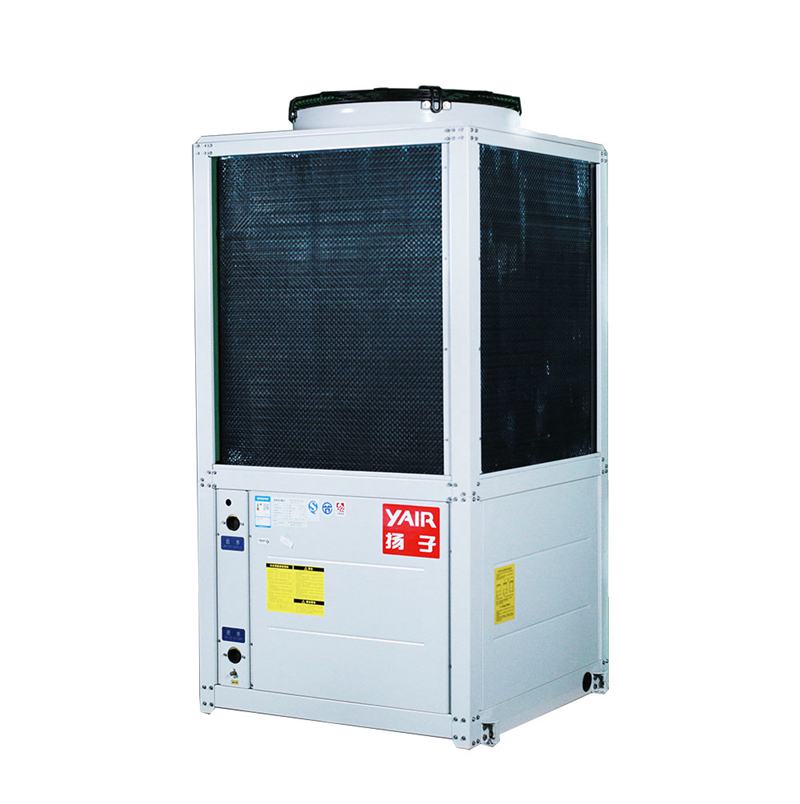

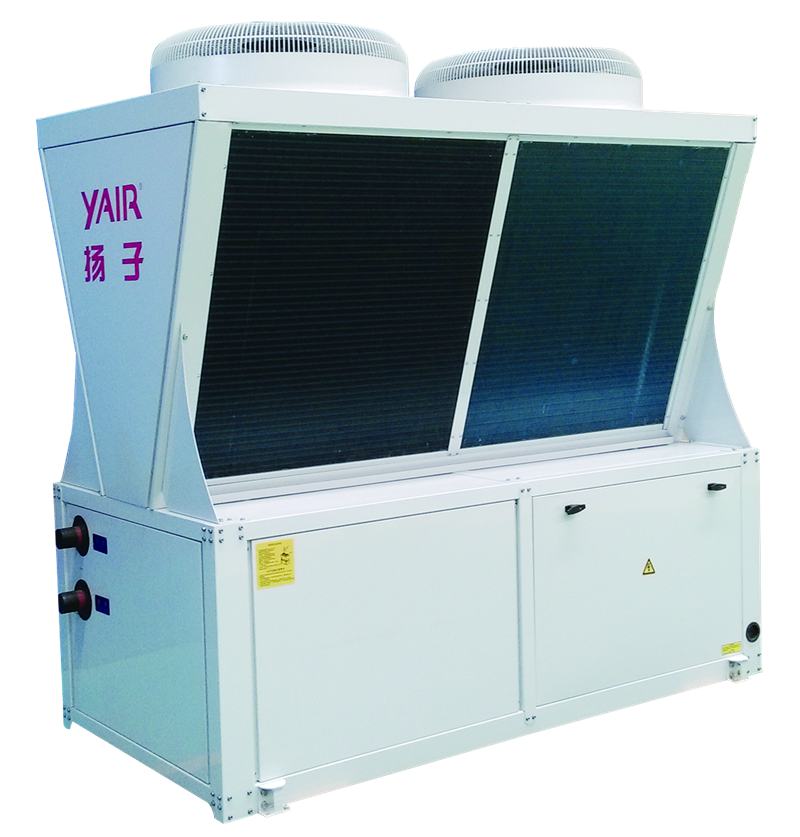

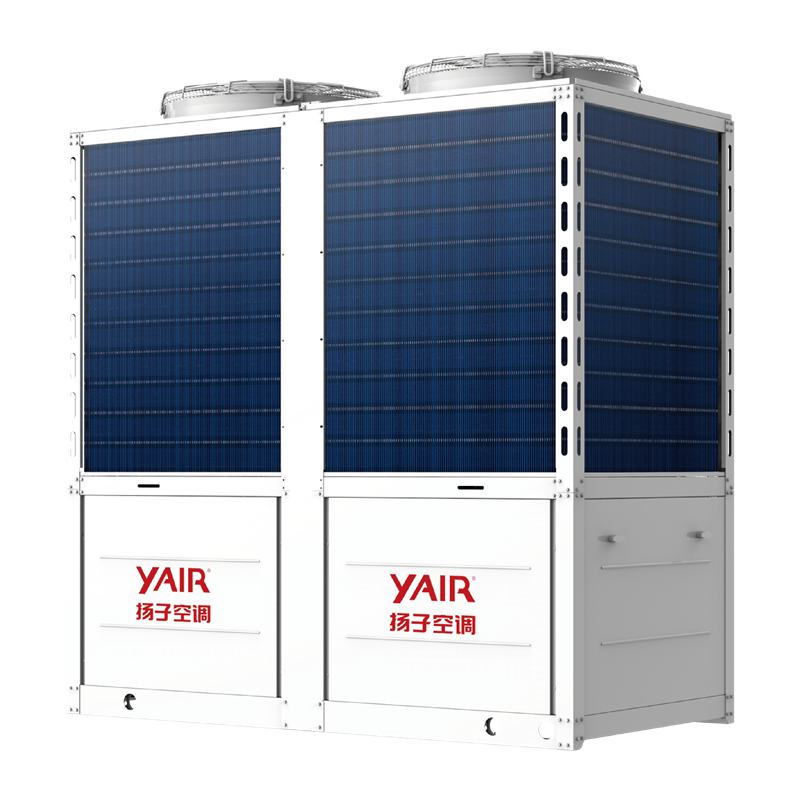

Modular Chiller
Air Cooled Heat Pump
A wide operating range, the unit can run in -16-45℃ Ambient temperature.
High efficiency MAX series U-type heat exchanger
Modular balanced operation technology: ccording to the load of the system, the unit sets the module unit with priority to be opened in rotation, and the running time of each module unit is balanced, which greatly improves the reliability and service life of the unit.
| Model | LSRF-65F/R1-E1 | LSRF-100F/R1-E1 | LSRF-130F/R1-E1 | |||
| Cooling Capacity | Kw | 65 | 100 | 130 | ||
| Heating Capacity | Kw | 68 | 105 | 140 | ||
| Power Supply | V/Ph/Hz | 380/3/50 | ||||
| Cooling Rated Input Power | Kw | 20 | 31.5 | 41.9 | ||
| Cooling Rated Input Power | Kw | 20.5 | 32 | 41.8 | ||
| Clima Range | ℃ | -16~48 | ||||
| Evaporating Side | Type | - | Shell and Tube Type | |||
| Water Flow Voluem | M3/H | 11.2 | 17.2 | |||
| Water Pressure Drop | Kpa | 50-60 | 50-60 | 50-60 | ||
| Unit Dimension | Length | mm | 1100 | 2200 | 2200 | |
| Width | mm | 1100 | 1100 | 1100 | ||
| Height | mm | 2340 | 2340 | 2340 | ||
| Noise Level | dB(A) | 68 | 69 | 69 | ||
| Compressor Type | - | Scroll Type | ||||
| Protection | - | High/Low pressure protection, overload protection, phase absence protection, water short protection, anti freezing protection | ||||
| Refrigerant | Type | - | R410a | |||
| weight | Kg | 15 | 14+9.2 | 2*14 | ||
| Unit Weight | Kg | 650 | 950 | 1100 | ||
| Inlet/Outlet Water Pipe | mm | DN40 | DN65 | DN65 | ||
| Model | LSRF-68D/R1-E2 | LSRF-100R/R1 | LSRF-130F/R1-E3 | |||
| Cooling Capacity | Kw | 68 | 100 | 130 | ||
| Heating Capacity | Kw | 72 | 110 | 140 | ||
| Power Supply | V/Ph/Hz | 380/3/50 | ||||
| Cooling Rated Input Power | Kw | 20.3 | 33.3 | 42.5 | ||
| Cooling Rated Input Power | Kw | 21.5 | 32.8 | 42 | ||
| Clima Range | ℃ | -16~48 | ||||
| Evaporating Side | Type | Shell and Tube Type | ||||
| Water Flow Voluem | M3/H | 11.7 | 17.2 | 22.4 | ||
| Water Pressure Drop | Kpa | 50-60 | ||||
| Unit Dimension | Length | mm | 2150 | 2200 | 2200 | |
| Width | mm | 1030 | 1100 | 1100 | ||
| Height | mm | 2135 | 2340 | 2390 | ||
| Noise Level | dB(A) | 68 | 69 | 69 | ||
| Compressor Type | - | Scroll Type | ||||
| Protection | - | High/Low pressure protection, overload protection, phase absence protection, water short protection, anti freezing protection | ||||
| Refrigerant | Type | - | R410a | |||
| weight | Kg | 2*8.5 | 2*8+2*4 | 2*15 | ||
| Unit Weight | Kg | 735 | 1100 | 1100 | ||
| Inlet/Outlet Water Pipe | mm | DN50 | DN65 | DN65 | ||
| Model | LSRF-64D/BHB-E2 | LSRF-130F/R1BH | LSRF-160F/R1BH | LSRF-170F/R1BH (Outlet Water Temp. 60℃) | ||
| Cooling Capacity | Kw | 63.5 | 127 | 140 | 135 | |
| Heating Capacity | Kw | 78 | 165 | 158 | 170 | |
| Power Supply | V/Ph/Hz | 380/3/50 | ||||
| Cooling Rated Input Power | Kw | 19.2 | 41.2 | 44.5 | 45.7 | |
| Cooling Rated Input Power | Kw | 20 | 45.2 | 39.5 | 48.5 | |
| Clima Range | ℃ | -25~48 | -26~48 | |||
| Evaporating Side | Type | Shell and Tube Type | ||||
| Water Flow Voluem | M3/H | 10.9 | 21.8 | 24.1 | 23.2 | |
| Water Pressure Drop | Kpa | 50-60 | ||||
| Unit Dimension | Length | mm | 2150 | 2200 | 2200 | 2200 |
| Width | mm | 1030 | 1100 | 1100 | 1100 | |
| Height | mm | 2135 | 2340 | 2395 | 2340 | |
| Noise Level | dB(A) | 68 | 69 | 69 | 69 | |
| Compressor Type | - | Scroll Type | ||||
| Protection | - | High/Low pressure protection, overload protection, phase absence protection, water short protection, anti freezing protection | ||||
| Refrigerant | Type | - | R22 | R410a | ||
| weight | Kg | 2*8 | 4*9 | 2*15 | 4*8 | |
| Unit Weight | Kg | 670 | 1200 | 1200 | 1200 | |
| Inlet/Outlet Water Pipe | mm | DN50 | DN65 | DN65 | DN65 | |
