Super Thin Type Fan Coil Unit

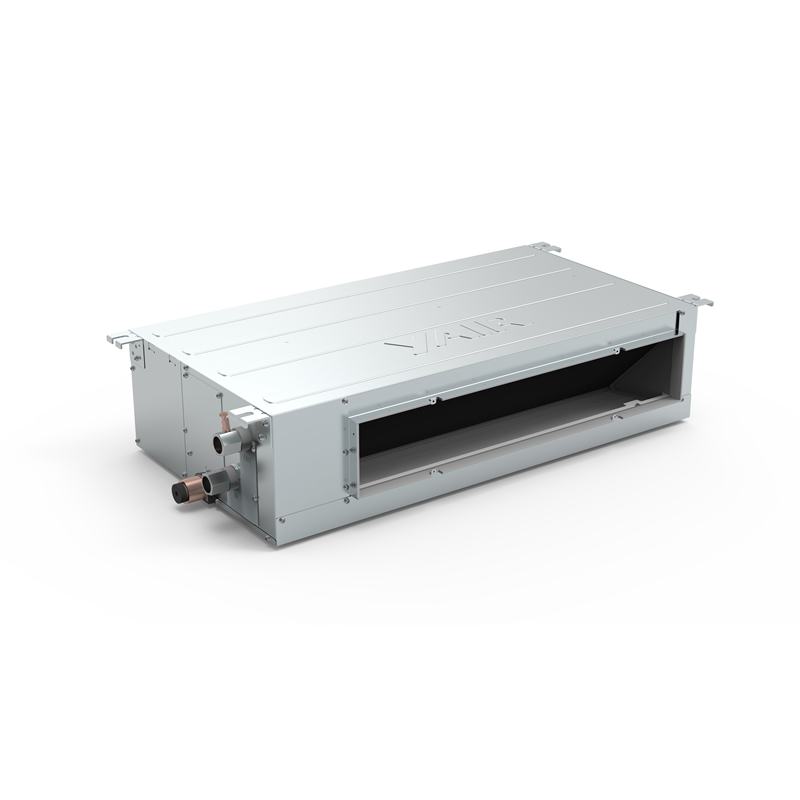

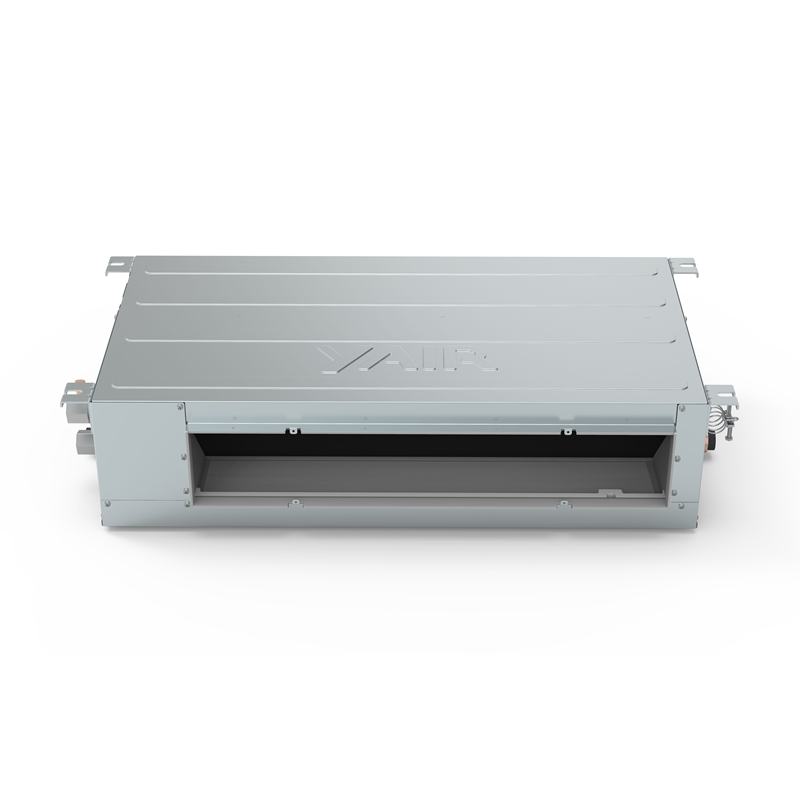

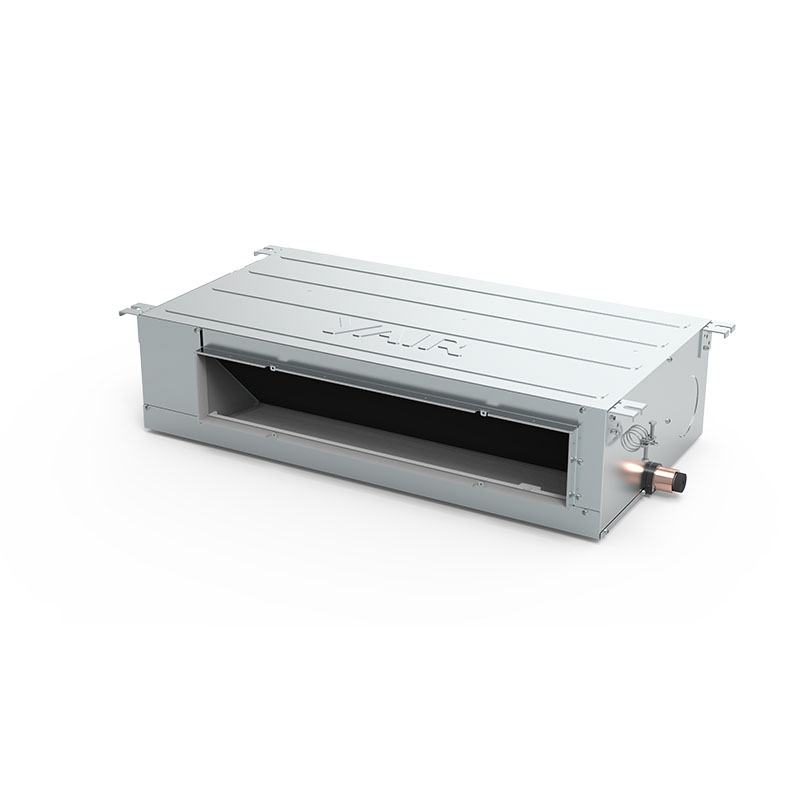

Horizontal concealed super thin type FCU

Ultra thin body design，the unit has an elegant structure, which can be installed concealed or exposed . The overall thickness of the body is only 200mm, leaving greater room for family decoration and saving space.

Easy maintenance. The unit is equipped with a standard return air box, which allows for free conversion of back return or bottom return External static pressure with two options 12 Pa and 5 Pa.

Specification

Model			FP-34-G	FP-51-G	FP-68-G	FP-85-G	FP-102-G
Air Flow Volume	High	m³/h	340	510	680	850	1020
	Mid	m³/h	272	408	544	680	816
	Low	m³/h	170	255	340	425	510
Cooling Capacity	High	W	2200	2850	3800	4900	5600
	Mid	W	1850	2650	3650	4300	5050
	Low	W	1200	2150	2700	3000	3600
Heating Capacity	High	W	3600	4900	6700	8200	9500
	Mid	W	3000	4500	6100	7000	8350
	Low	W	2100	3650	4300	4700	5800
Fan	Type	-	Centrifugal Fan
Fan	Qty	-	2	2	2	3	3
Motor	Qty	-	1	1	1	1	1
Power Supply	-	V/PH/Hz	220/1/50
Input power	12Pa	W	31	41	60	75	91
Input power	5Pa	W	30	40	58	74	88
Noise Level In High Volume	12Pa	dB(A)	29	34	40.5	38	42
Noise Level In High Volume	5Pa	dB(A)	27.5	33	39	36	40.5
Heat Exchanger	Working Pressiure	Mpa	≤1.6
Heat Exchanger	Water Pipe Size	mm	DN20
Trip Dray Pipe Size		mm	Φ25
Water Pump Pipe Size		mm	Φ25
Water Flow Volume		L/h	390	530	750	900	950
Water Resistance		kPa	17	15	30	21	26
Unit Weight		Kg	14.3	14.4	15.6	20.4	21
Unit Dimension	L	mm	925	925	925	1273	1273
	W	mm	458	458	458	458	458
	H	mm	200	200	200	200	200
Packing Size	L	mm	995	995	995	1346	1346
	W	mm	551	551	551	551	551
	H	mm	278	278	278	278	278

Remark:
1.Cooling Testing Condition: Inet Air DB Temperature 27°C ,WB 19.5°C, Inet water Temperature 7°C ,outlet water temperature 5 °C
2.Heating Testing Condition: Inet Air DB Temperature 21°C ,outlet water temperature 60 °C
3.Noise Level Testing Condition: In Rated Operating Conditioning, background Noise in 21.5dB(A), testing in front and below of the unit with 1m.
