-35°C～40°C Cold Storage
Quick Frozen Cold Chain Condensing Unit
-35 ° C～40 ° C wide temperature range refrigeration
The first two-stage scroll compressor in the world.
Quick frozen and fresh lock technology helps food quickly pass through the ice crystal formation range (-1 ° C to -5 ° C).
Hot Gas technology saves about 50% energy than the normal electric heating defrosting.
The temperature fluctuation of the hot gas defrosting is within 1 ° C, extending longer food preservation time.
Precision Temperature Controlling at ± 0.5 ° C, more precise temperature control to extend preservation time.
| Model | YLSDR058DWf | YLSDR085DWf | YLSDR110DWf | ||
| Cooling Storage Area | m³ | 8~58 | 35~85 | 50~110 | |
| Indoor Unit Model | - | YLDR6500Df | YLDR6500Df | YLDR6500Df | |

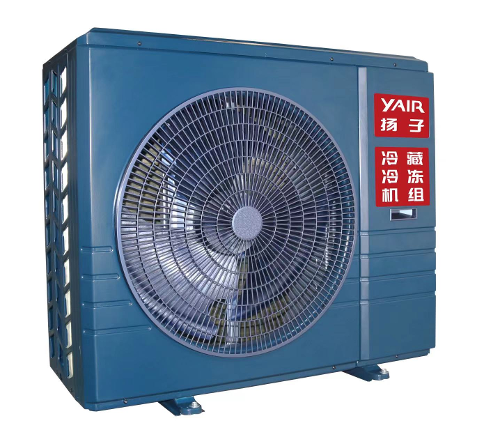

| Main Unit Model | - | YLSDR058Wf | YLSDR085Wf | YLSDR110Wf | |
| Cooling Capacity | W | 15000（600~15000） | 18000（600~18000） | 24000（600~24000） | |
| Norminal Condition | ℃ | 10℃/32℃ | 10℃/32℃ | 10℃/32℃ | |
| Store Room Temp.Range | ℃ | （-35℃~40℃） | （-35℃~40℃） | （-35℃~40℃） | |
| Ambient Temp.Range | ℃ | -45℃~65℃ | -45℃~65℃ | -45℃~65℃ | |
| Power Supply | V/Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | |
| Max Input Power | W | 5000（800~5000） | 5500（800~5500） | 6000（800~6000） | |
| Max.Input Current | A | 22.8A | 25A | 27.5A | |
| Compressor | - | DC Inverter two stage scroll compressor | |||
| Refrigerant Type | - | R32 | R32 | R32 | |
| Refrigerant Weight | g | 2.75 | 2.75 | 2.75 | |
| Main Unit Noise Level | dB（A） | 68 | 68 | 68 | |
| Main Unit Flow Volume | m³/h | 6500 | 6500 | 6500 | |
| Connect Pipe Size | mm | Φ9/Φ16 | Φ9/Φ16 | Φ9/Φ16 | |
| Throttling method | - | Electronic expansion valve | |||
| Connecting Type | - | Threaded Connection | |||
| Main Unit size | mm | 1055*879*488 | 1055*879*488 | 1055*879*488 | |
| Main Unit Weight | kg | 86 | 86 | 86 | |

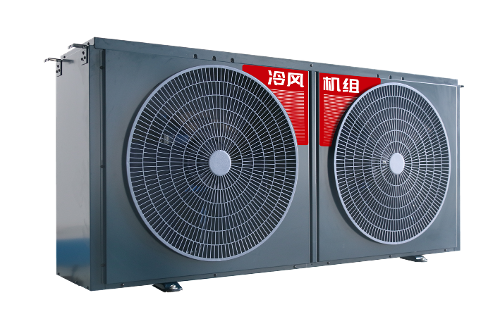

| Indoor Unit Model | YLDR6500Df | YLDR6500Df | YLDR6500Df | ||
| Fan | Air Flow Volume | m³/h | 6500 | 6500 | 6500 |
| Power Supply | V/Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | |
| Fan Input Power | W | 240 | 240 | 240 | |
| Size | W | mm | 1618.5 | 1618.5 | 1618.5 |
| D | mm | 365.5 | 365.5 | 365.5 | |
| H | mm | 720 | 720 | 720 | |
| Net weight | kg | 45 | 45 | 45 | |
| Pipe | Liquid Pipe | mm | Φ9 | Φ9 | Φ9 |
| Gas Pipe | mm | Φ16 | Φ16 | Φ16 | |
